fastKDE and xarray
This notebook demonstrates basic usage of fastkde.plot with xarray.
import numpy as np
try:
import fastkde
import xarray
except:
# install fastkde
!pip install --upgrade fastkde
import fastkde
import matplotlib.pyplot as plt
For this example, we will generate data with the following relationships:
\[x := \mathcal{N}(0,\pi)\]
\[y := \mathcal{N}(\sin(x), 1)\]
""" Sample the two variables """
N = int(1e5)
x = np.random.normal(size=N, scale=np.pi / 2)
y = np.sin(x) + np.random.normal(scale=1, size=N)

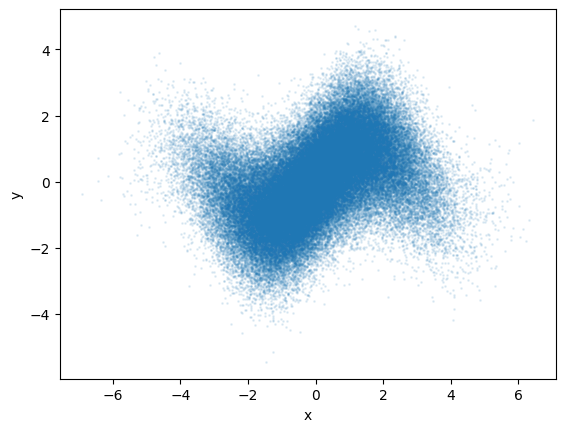

# plot the data
plt.scatter(x, y, s=1, alpha=0.1)
plt.xlabel("x")
plt.ylabel("y")
plt.show()
""" Calculate and plot 1D PDFs. """
# calculate the PDFs of x and y
pdf_x = fastkde.pdf(x, var_names=["x"])
pdf_y = fastkde.pdf(y, var_names=["y"])

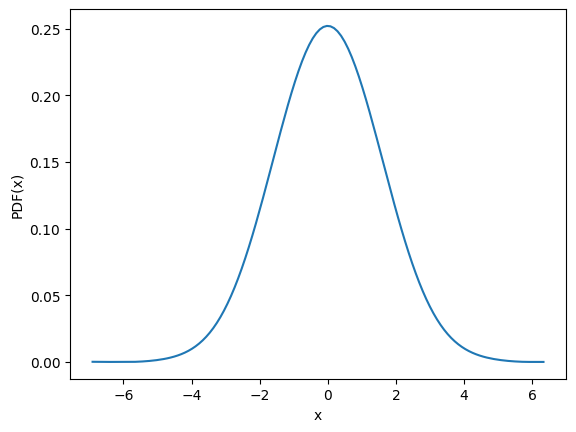

# plot PDF(x)
pdf_x.plot()
plt.show()
# plot PDF(y)
pdf_y.plot()
plt.show()
""" Compute the 2D PDF. """
pdf = fastkde.pdf(x, y, var_names=["x", "y"])
pdf
<xarray.DataArray (y: 129, x: 128)> Size: 132kB
array([[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
...,
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.]], shape=(129, 128))
Coordinates:
* x (x) float64 1kB -6.906 -6.802 -6.698 -6.594 ... 6.125 6.229 6.334
* y (y) float64 1kB -5.46 -5.381 -5.302 -5.222 ... 4.554 4.633 4.713
Attributes:
long_name: PDF(x,y)""" Plot the PDF using xarray. """

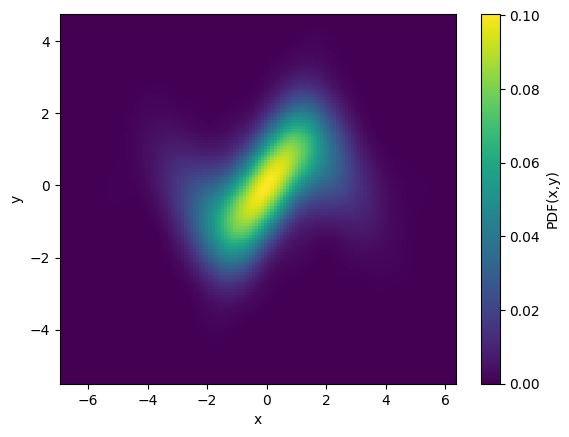

# plot the 2D pdf
pdf.plot();

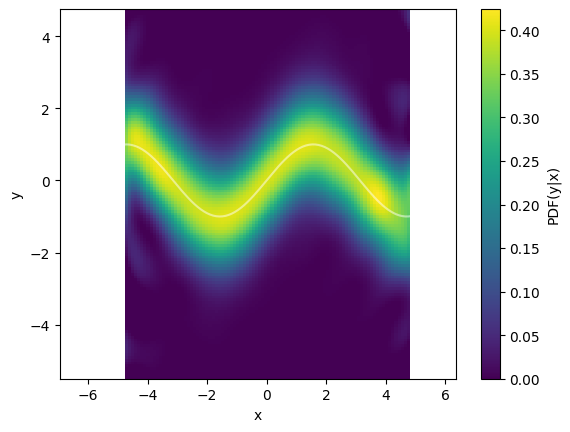

""" Compute and plot the conditional PDF using xarray. """
cpdf = fastkde.conditional(y, x, var_names=["x", "y"])
# plot the conditional
cpdf.plot()
# plot the true conditional mean
plt.plot(cpdf.x, np.sin(cpdf.x), color="white", alpha=0.5);
